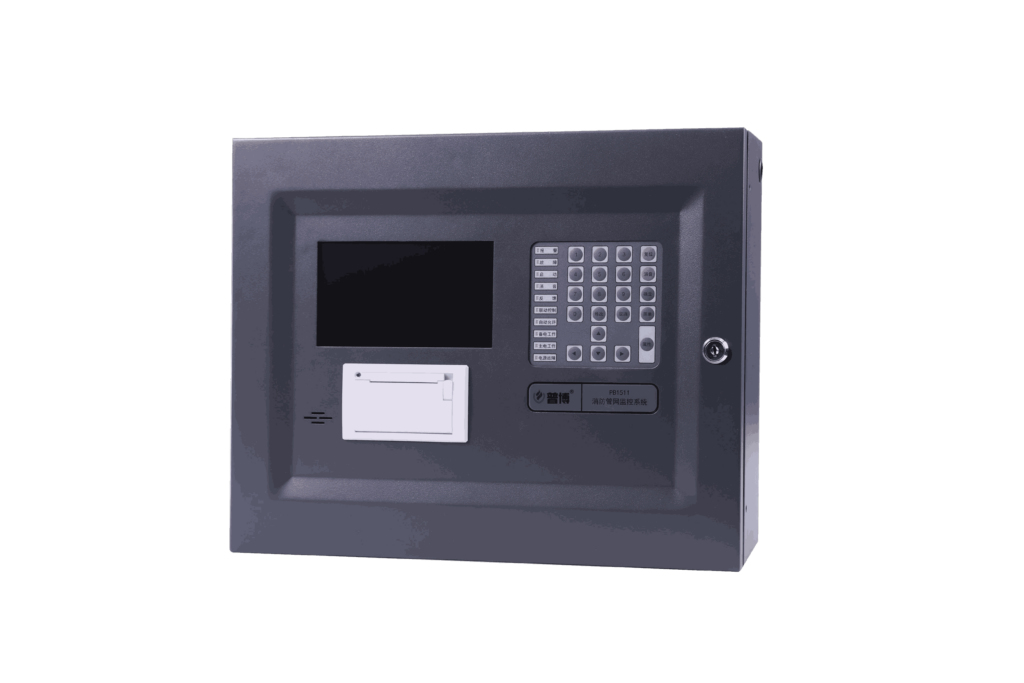

Fire Pipe Network Monitoring System Controller

The controller of the fire protection pipe network monitoring system adopts a high-speed and low-power microprocessor as the core of the controller, and carries out real-time monitoring and remote control of the operating status of the on-site control cabinet, the water level of the pool (tank), the pressure and flow of the pipe network and the terminal water test device.
Adopt 7-inch color LCD display, intuitively display the operation of each piece of equipment on the scene, and can display the installation location of each piece of equipment, easy to maintain and manage.
The host can automatically store 10,000 history records, users can query the operation records at any time.
The controller is configured with Ethernet data output, which can communicate with remote cloud platform software via TCP/IP to realize WAN remote data monitoring.

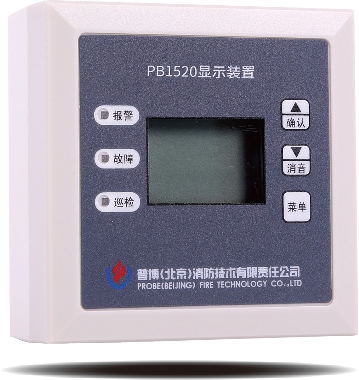

Pipe Network Display Device

There are a total of six models of display units with sensors that show water pressure, circuits, and more.

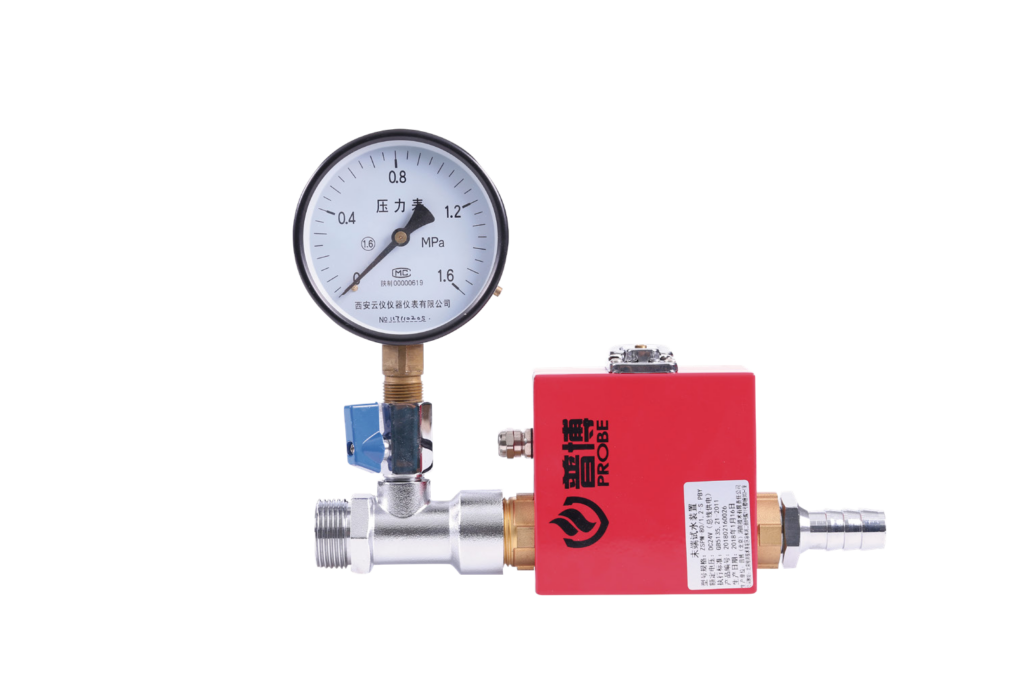

Terminal Water Test Device

Terminal water test device for monitoring fire sprinkler terminal pressure values
Monitors whether the real working pressure of the nozzle at the most unfavorable point reaches the specified value and uploads the data in real time to the field display device and the controller of the fire hose network monitoring system. If the data is abnormal, the display device and the system controller will alarm at the same time.
Individually settable alarm thresholds and addresses for the display device

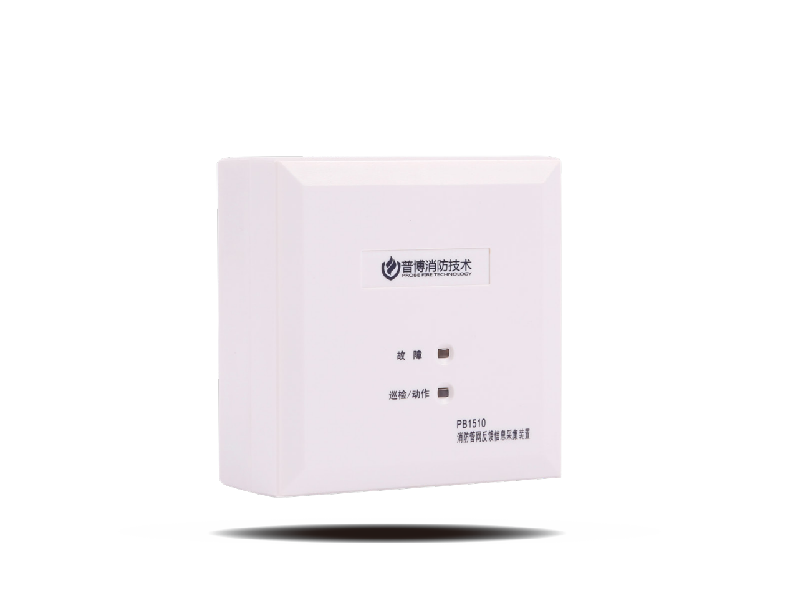

Fire Pipe Network Feedback Information Collection Device

Fire pipe network feedback information collection device for fire pipe network water flow indicators, signal valves, pressure switches and fire pumps and other action information collection device
In case of short-circuit or disconnection of the monitored part, the fault lamp lights up and the feedback signal is uploaded to the controller of the fire protection pipe network system.

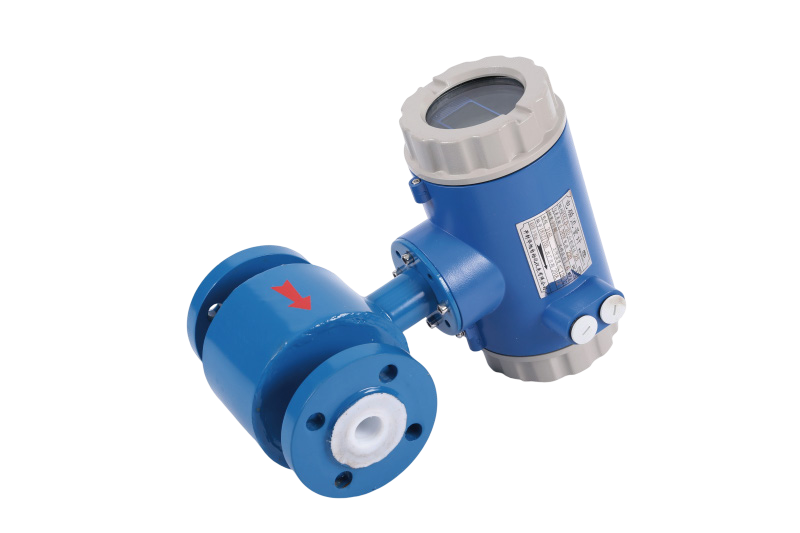

Fire Pipe Network Flow Information Collection Device

Fire pipe network flow information collection device is used to collect the flow monitoring in the fire pipe network.
Flow data can be uploaded to the controller for display
Individually settable alarm thresholds and addresses for the display device

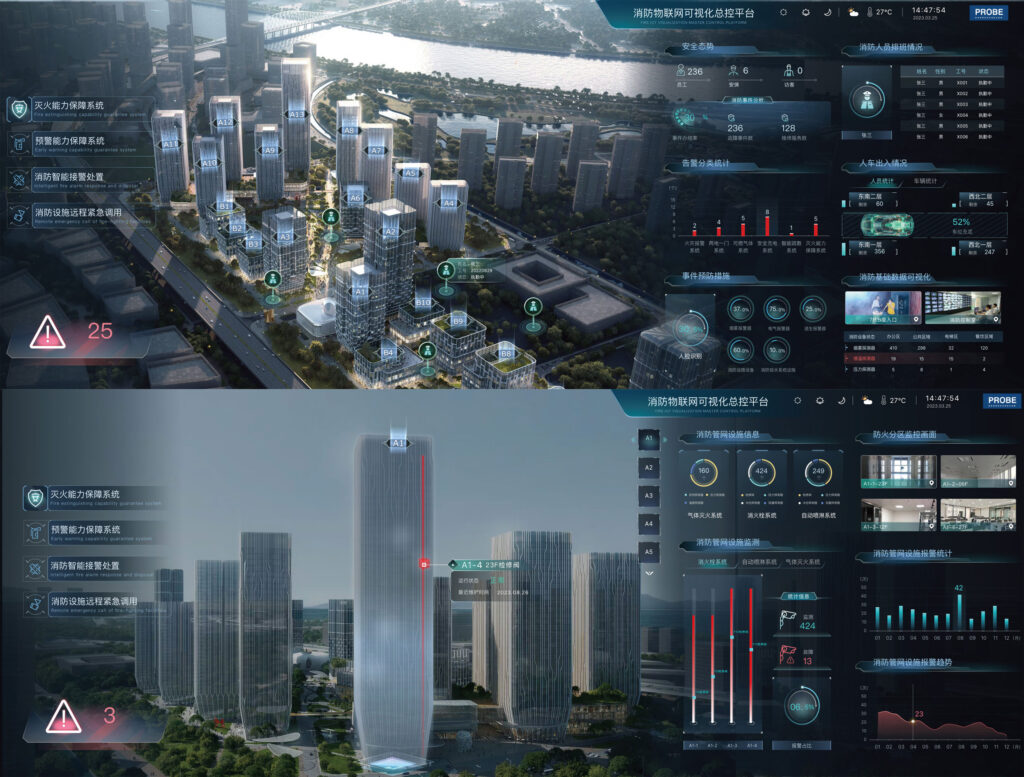

Fire Iot Visual Control Platform

Combined with the construction of smart cities, the use of Internet of Things, big data, cloud computing and other technical means to explore the establishment of a new model of fire combination.
Real-time control of the safety status of the target unit, remote monitoring of fire-fighting facilities, visualization and monitoring of key units.
The platform makes full use of Internet of Things technology and establishes a new mechanism of informationization-led supervision and service.
Safety Hazard Inspection System.
Closed-loop management of fire hazards.
Convenient cloud management for cell phones.
Equipment quality and software maintenance.
Fire IoT Visualization Platform Enterprise Services.
